A few pictures of the OSU Van de Graaff particle accelerator, which was capable of a whopping 7MeV on a good day. Fiddling low energy even by 1970 standards, though the polarized beam source being tested in the fourth image provided a lot of good data over the years.
Click any image to view at full size
-
- Outside view of the lab – the machine and tank storage shelf were in the white tower
-
- Van de Graaff machine with tank and dome (upper right) removed, and maintenance platform in place
-
- Pressure tank parked on storage shelf above and to one side of the Van de Graaff machine
-

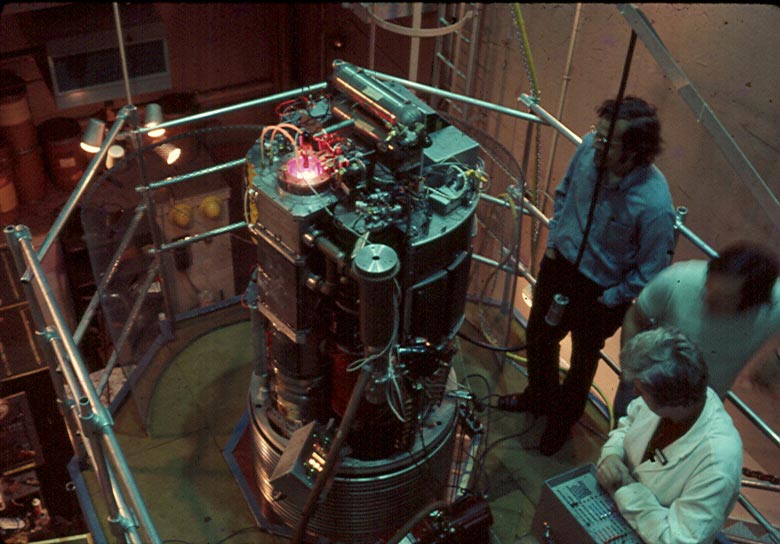

- Testing the beam source bottle and electronics before closing and conditioning the machine for a run
-
- Beam analyzing magnet below the machine in the target room
-
- Individual experiments in the target room
-
- Magnet and machine control panels
-
- Analyzing electronics
-
